Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF's uncompromised sound quality where installation space is at a premium.
Key Features
- <36mm mounting depth allows fitment to very restricted cavities
- Ultra-low profile LF unit with excellent bass extension
- Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
- Rigid flat diaphragm assures clean upper bass and mid-range response
- Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
- Fast, versatile installation on virtually any surface via dogleg
Requiring less than 36mm of mounting depth, the Ci160TS fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications.

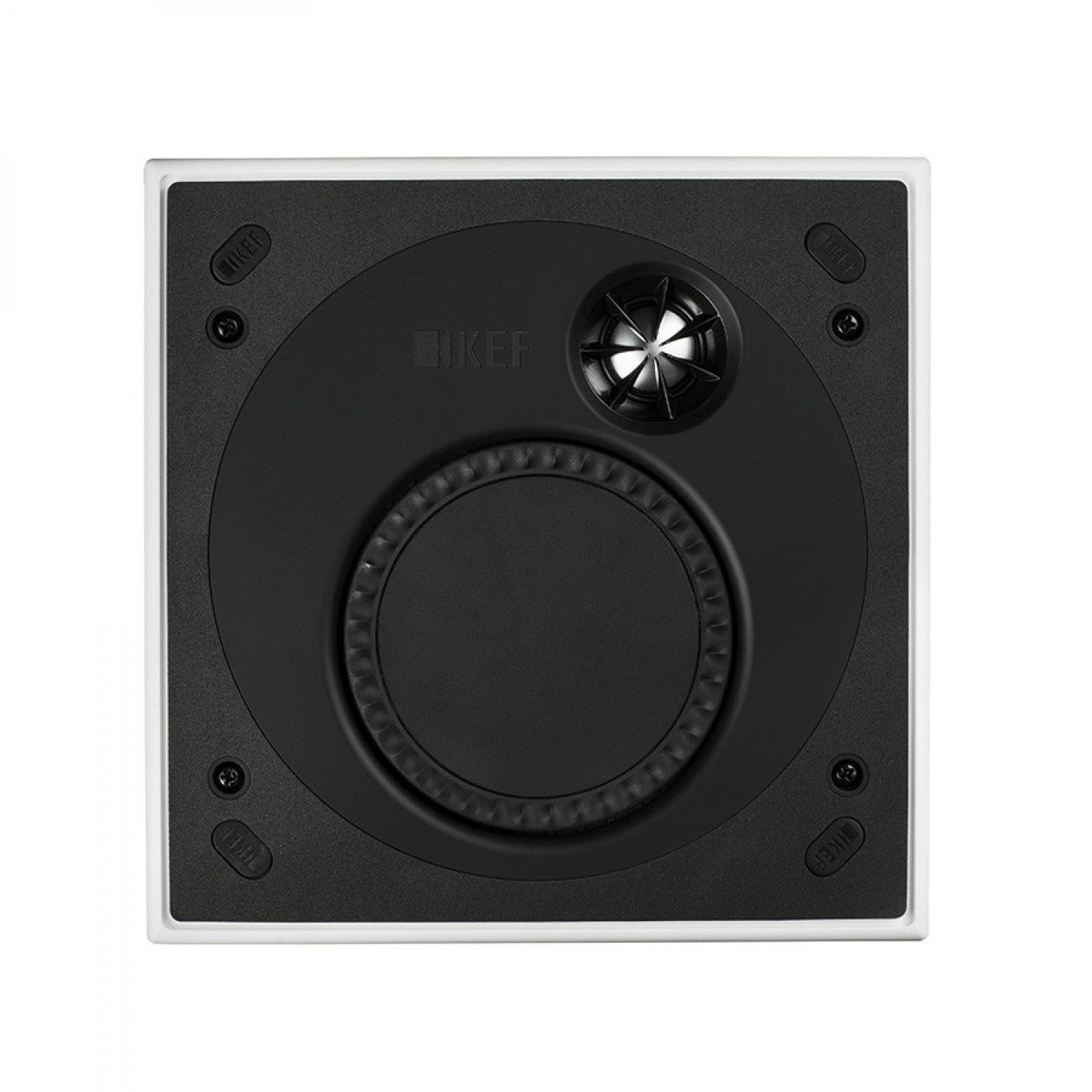

KEF Ci160TS In-Ceiling/Wall Speaker Each
Ci160TS Specifications
Nominal Impedance 8 Ohm
Sensitivity 87dB (2.83V/ 1m)
Frequency Response 110Hz - 24Hz (+/6dB) open-backed
Drive Units LF: 115mm (4.5in. Dual layer)
HF: 25mm (1in)
Recommended Amplifier Power 10-100W
Product External Dimensions Diameter: 222.8 x 222.8 mm (8.77 x 8.77 in)
Depth: 41 mm (1.61")
Cut-Out Dimensions 194 x 194 mm (7.64 x 7.64")
Mounting Depth From Surface <36mm (1 7/16in.)
Optional Rough In Frame RIF160S
Optional Rear Enclosure RNC160S
Net Weight 1.05 kg (2.31 lbs)
Unit Measurement Piece
